Description
C2120Z-L4 (N97)
| Chassis | Material/Structure | Aluminum case, fanless design | |
| Color | Bright black | ||
| Size (length, width and height)/ Weight | L141.4 * W126 * H44MM / 0.9KG | ||

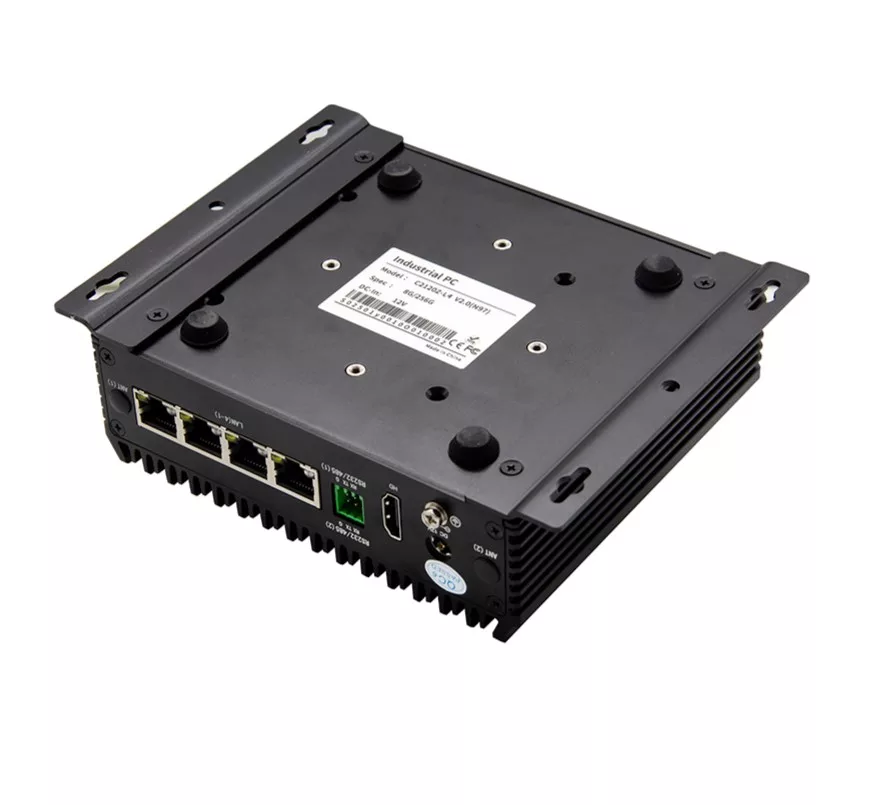

| Install | VESA-mount / wall-mount | ||

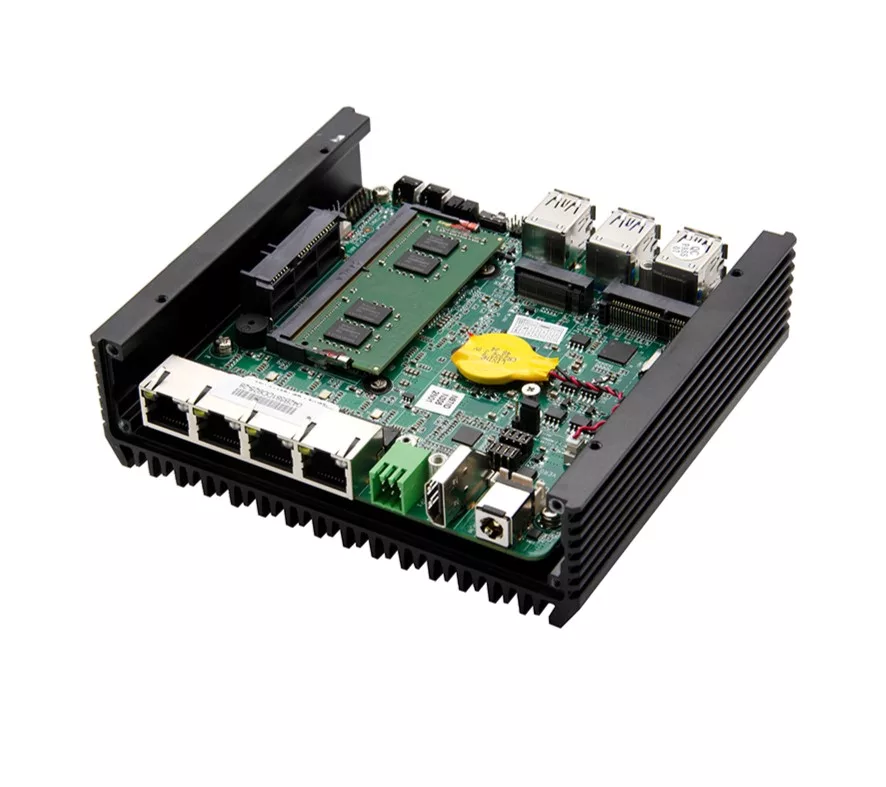

| Motherboard | CPU | Onboard Intel®Alder Lake-N N97/Turbo 3.6GHz quad core processor，TDP 12W | |
| Graphics | Intel®UHD Graphics， support 4K display | ||
| Memory | 1* SODDR4，3200MHz，up to 16GB | ||

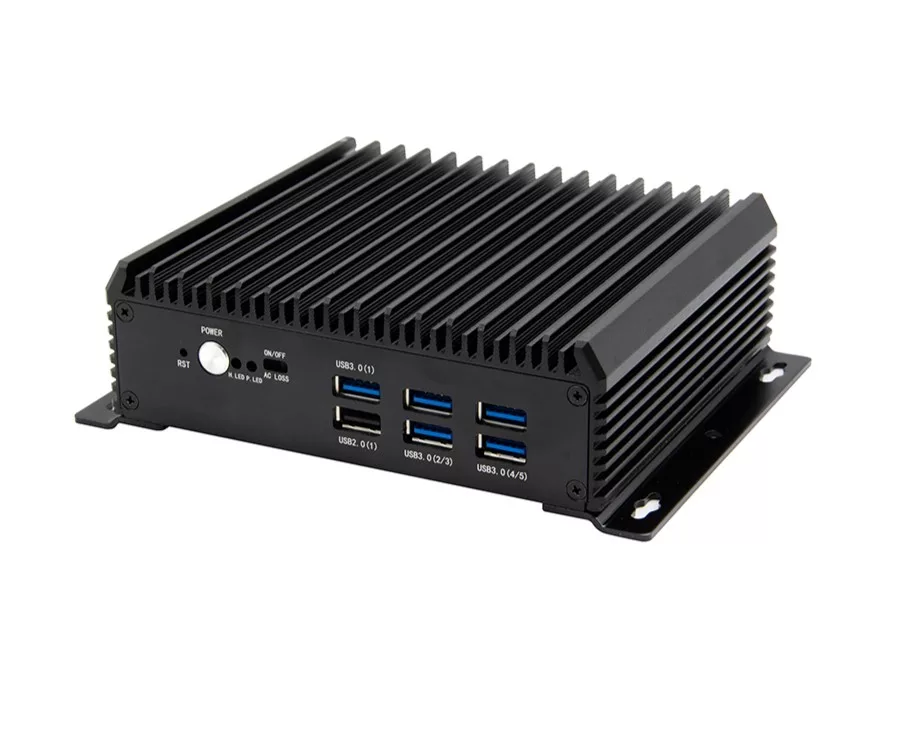

| Front panel interface | POWER | 1*Power button，1*One-key recovery，1*ACLOSS（auto power ON/OFF） | |
| Audio | 1*Audio，Line out & MIC 2 in 1 | ||
| USB | 5*USB3.0，1*USB2.0 | ||
| LED | 1*Power LED，1*HDD LED | ||

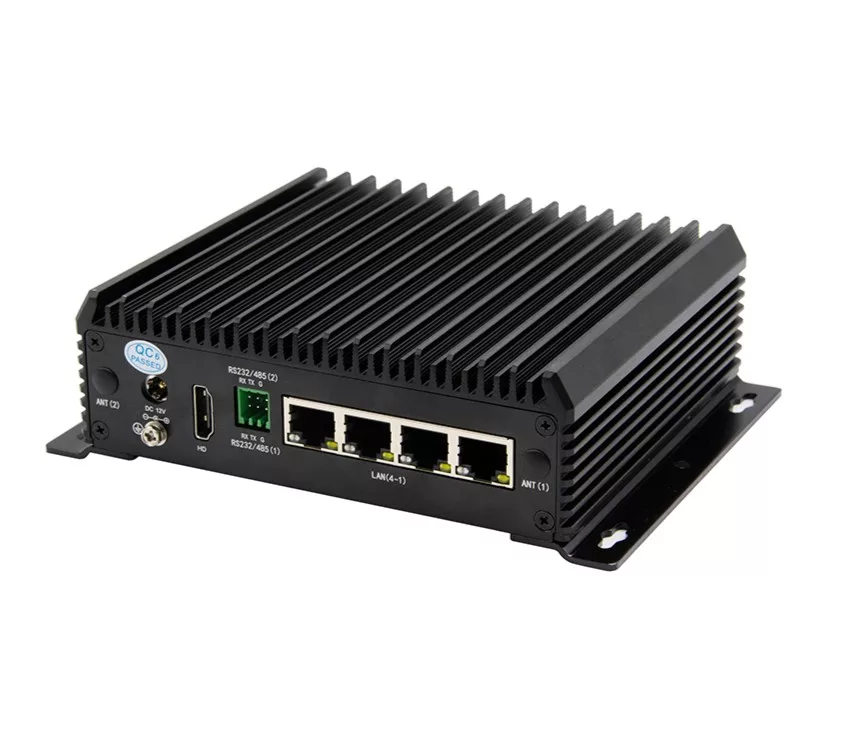

| Rear panel interface | Power | 1*DC 12V（5.5*2.5） | |
| Display interface | 1*HDMI1.4(4096×2160@60Hz) | ||
| LAN | 4*Intel I210 Gigabit LAN port，support Wake on LAN、PXE | ||
| COM | 2*RS232/RS485 (on Phoenix connector, 2*3P P=2.54mm) | ||
| Storage | SATA | 1*2.5”SATA port (thickness 7mm) | |
| M.2 | 1*M.2/SSD，support Key-M，2280，NVME PCIE x2 SSD | ||
| Expand | Mini PCIE | 1*Min-PCIE，support WIFI/4G module | |
| Software Support | Microsoft Windows | Windows 10/11 IoT | |
| Linux | Ubuntu | ||
| Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) | ||
| Power Requirements | Power Type | External power adapter | |
| Voltage input | DC 12V | ||
| Power output | AC TO DC、36W | ||
| Surroundings | Operating temperature | -10℃～50℃ | |
| Storage temperature | -20℃～70℃ | ||
| Relative humidity | 5%-95% relative humidity, no condensation | ||
| Work vibration | 0.5g rms/5-500HZ/random/operating |
